Any unsealed electrical devices mounted to a control panel or piece of electrical equipment can fall victim to the impacts of hostile environmental factors if not properly protected. In this context, “environmental” is a very broad term, encompassing any number of possible factors, including weather conditions like rain, snow or prolonged wind and sun exposure, pressure changes from submersion in fluids or changes in altitude, contaminants such as water, ice, salt, air, dust, dirt, grease, chemicals, and even spilled beverages.

In order to protect against these threats, APM Hexseal designed and patented the very first Sealing Boot in the late 1940s and, in doing so, set the standards for the developing industry to follow.

APM Hexseal’s Sealing Boots and Bushing Seals provide strong protection for both the external and internal workings of a device, ensuring the safety, reliability and overall function of the system as a whole.

APM Hexseal’s Sealing Boots and Bushing Seals are available in a variety of styles and install easily over the vast majority of standard electro-mechanical switches and devices on the market.

MATERIAL SPECIFICATIONS

Toggle Boots

Toggle switches have been widely used across all sorts of industries for a very long time. With their straightforward, back and forth actuation making them easy to operate, toggle switches have continued to be one of the more common styles of switch used today. The long life of the toggle switch has given APM Hexseal the opportunity to develop a variety of designs over the years, incorporating different sealing techniques to cater to a broad range of switch applications and installation environments. The majority of APM Hexseal toggle boots are a single piece design, molded from silicone over a threaded mounting nut. Our designs include fully enclosed toggle boots that cover the entirety of a switch, as well as half boots that leave a portion of the toggle bat exposed. No matter the variation, all APM Hexseal designs include our signature sealing rib that ensures a secure seal with the mounting panel, and are extremely effective toggle switch sealing solutions.

MATERIAL SPECIFICATIONS
For APM Hexseal® Standard Threaded Toggle Boots

Mounting Nut: Brass, Nickel Plated
Elastomer: Silicone conforms to A-A-59588, Class 3A, GR50 †, Gray ‡
Temperature Range: -103° F to +400° F ( -75° C to +204° C)
Resistant to: Splash, salt spray, sunlight, ozone, weather, fungus, dust, and most acids and lubricating oils.
Shelf Life: Excess of 25 years.

*IQ Toggle Boots “Install Quickly” over pre-installed switches.
**Toggle Boot with EMI/RFI Shielding.


Click to Enlarge


Catalogs


APM Hexseal Catalog

Click on any link below to open a PDF information sheet, PDF drawing or product image. These documents are for reference only. To request the latest document revision or to request other documentation, please contact Sales

APM Hexseal
Part #
Military
Part #
Thread Size Max Bat Height
(Above Bushing)
Internal Diameter (A) Height (B) Hex Size/Outer
Diameter (C)
System of Meas.

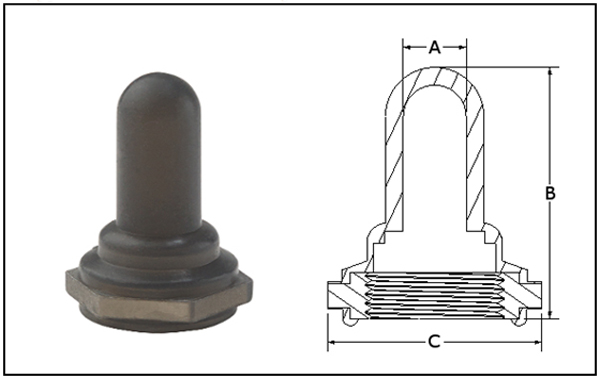

Full Toggle Boots with Secondary Inner Seal
C1331/27 - 15/32-32 UNS-2B 0.710" / 18.03mm 0.219" / 5.56mm 0.937" / 23.80mm 0.625" / 15.88mm Imperial
N1030 M5423/01-01 15/32-32 UNS-2B 0.660" / 16.76mm 0.219" / 5.56mm 0.844" / 21.44mm 0.625" / 15.88mm Imperial
N5030 M5423/04-01 1/4-40 UNS-2B 0.310" / 7.87mm 0.104" / 2.64mm 0.422" / 10.72mm 0.375" / 9.53mm Imperial
Full Toggle Boots with Constant Internal Diameter
1131/26 - 15/32-32 UNS-2B 0.900" / 22.86mm 0.212" / 5.38mm 1.093" / 27.76mm 0.625" / 15.88mm Imperial
50154 - 15/32-32 UNS-2B 0.925" / 23.50mm 0.300" / 7.62mm 1.110" / 28.19mm 0.625" / 15.88mm Imperial
C1131/28 - 15/32-32 UNS-2B 0.710" / 18.03mm 0.219" / 5.56mm 0.937" / 23.80mm 0.625" / 15.88mm Imperial
IN1030 - 15/32-32 UNS-2B 0.660" / 16.76mm 0.219" / 5.56mm 0.844" / 21.44mm 0.625" / 15.88mm Imperial
IQ1030* - 15/32-32 UNS-2B 0.735" / 18.67mm 0.250" / 6.35mm 0.975" / 24.77mm 0.875" / 22.22mm Imperial
N5030L M5423/05-01 1/4-40 UNS-2B 0.370" / 9.40mm 0.062" / 1.57mm 0.500" / 12.70mm 0.375" / 9.53mm Imperial
N5030S - 1/4-40 UNS-2B 0.500" / 12.70mm 0.062" / 1.57mm 0.594" / 15.08mm 0.375" / 9.53mm Imperial
1131/26 M12x.75 - M12 x 0.75 6H 0.900" / 22.86mm 0.225" / 5.72mm 1.093" / 27.76mm 0.625" / 15.88mm Metric
1131/26 M12x1 - M12 x 1 6H 0.900" / 22.86mm 0.225" / 5.72mm 1.093" / 27.76mm 0.625" / 15.88mm Metric
1131/31 M12 - M12 x 1 6H 0.668" / 16.97mm 0.256" / 6.50mm 0.850" / 21.59mm 0.625" / 15.88mm Metric
1131/40 - M12 x 1 6H 0.668" / 16.97mm 0.234" / 5.95mm 0.859" / 21.83mm 0.625" / 15.88mm Metric
C1131/41 - M12 x 0.75 6H 0.633" / 16.08mm 0.210" / 5.30mm 0.850" / 21.60mm 0.625" / 15.88mm Metric
IN1030 RFI** - 15/32-32 UNS-2B 0.660" / 16.76mm 0.219" / 5.56mm 0.844" / 21.44mm 0.625" / 15.88mm Metric
APM Hexseal
Part #
Military
Part #
Thread Size Throat Diameter (A) Height (B) Hex Size/Outer
Diameter (C)
Toggle Bat Diameter
(Min.-Max.)
System of Meas.

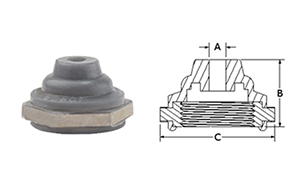

Half & Open Toggle Boots with Exposed Actuator
1132/60* - 15/32-32 UNS-2B 0.160" / 4.06mm 0.310" / 7.87mm 0.625" / 15.88mm 0.170-0.200" / 4.32-5.08mm Imperial
C1132/20 - 15/32-32 UNS-2B 0.109" / 2.77mm 0.437" / 11.10mm 0.625" / 15.88mm 0.115-0.240" / 2.92-6.10mm Imperial
C1132/26** - 15/32-32 UNS-2B 0.210" / 5.33mm 0.848" / 21.54mm 0.625" / 15.88mm 0.270-0.285" / 6.86-7.24mm Imperial
N1030B M5423-02-01 15/32-32 UNS-2B 0.109" / 2.77mm 0.437" / 11.10mm 0.625" / 15.88mm 0.115-0.240" / 2.92-6.10mm Imperial
N5032B M5423/11-01 1/4-40 UNS-2B 0.047" / 1.19mm 0.250" / 6.35mm 0.375" / 9.53mm 0.062-0.188" / 1.57-4.78mm Imperial
1132/17 M5x0.5 - M5 x 0.5 6H 0.043" / 1.10mm 0.225" / 5.70mm 0.315" / 8.00mm 0.062-0.188" / 1.57-4.78mm Metric
1132/33 M12x1 - M12 x 1 6H 0.093" / 2.36mm 0.437" / 11.10mm 0.625" / 15.88mm 0.115-0.240" / 2.92-6.10mm Metric
1132/60 M12* - M12 x 1 6H 0.160" / 4.06mm 0.310" / 7.87mm 0.625" / 15.88mm 0.170-0.200" / 4.32-5.08mm Metric
APM Hexseal Part # Military Part # Thread Size Max Plunger Height
(Above Bushing)
Internal Diameter (A) Height (B) Hex Size/Outer Diameter (C) System of Measurement

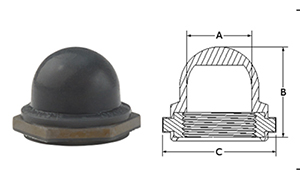

Pushbutton Boots with Hex-Shaped Insert (Figure C)
1231/8 - 3/8-27 UNS-2B 0.3970" / 10.08mm 0.300" / 7.62mm 0.653" / 16.59mm 0.500" / 12.70 mm Imperial
1231/35 - 3/8-32 UNEF-2B 0.418" / 10.62mm 0.300" / 7.62mm 0.670" / 17.20mm 0.500" / 12.70 mm Imperial
1231/51 - 3/8-27 UNS-2B 0.665" / 16.88mm 0.313" / 7.95mm 0.875" / 22.23mm 0.500" / 12.70 mm Imperial
1238/1 SS* - 15/32-32 UNS-2B 0.306" / 7.77mm 0.422" / 10.72mm 1.008" / 25.60mm 0.750" / 19.05mm Imperial
N3030 M5423/07-01 15/32-32 UNS-2B 0.281" / 7.14mm 0.422" / 10.72mm 0.547" / 13.89mm 0.625" / 15.88mm Imperial
N3030 M5423/07-01 15/32-32 UNS-2B 0.281" / 7.14mm 0.422" / 10.72mm 0.547" / 13.89mm 0.625" / 15.88mm Imperial
N3030 RFI † M5423/07-06 15/32-32 UNS-2B 0.281" / 7.14mm 0.422" / 10.72mm 0.547" / 13.89mm 0.625" / 15.88mm Imperial
N3040 M5423/07-04 5/8-24 UNEF-2B 0.281" / 7.14mm 0.515" / 13.08mm 0.609" / 15.47mm 0.750" / 19.05mm Imperial
N5040 M5423/10-03 1/4-40 UNS-2B 0.141" / 3.58mm 0.188" / 4.78mm 0.313" / 7.95mm 0.375" / 9.53mm Imperial
N5040G M5423/10-01 1/4-32 UNEF-2B 0.203" / 5.16mm 0.188" / 4.78mm 0.313" / 7.95mm 0.375" / 9.53mm Imperial
N5040R M5423/10-02 1/4-40 UNS-2B 0.203" / 5.16mm 0.188" / 4.78mm 0.313" / 7.95mm 0.375" / 9.53mm Imperial
N5045 - 8-40 UNS-2B 0.188" / 4.78mm 0.120" / 3.05mm 0.297" / 7.54mm 0.250" / 6.35mm Imperial
NC3030 M5423/07-02 15/32-32 UNS-2B 0.438" / 11.13mm 0.422" / 10.72mm 0.719" / 18.26mm 0.625" / 15.88mm Imperial
NC3030 7/16-28 - 7/16-28 UNEF-2B 0.438" / 11.13mm 0.374" / 9.50mm 0.719" / 18.26mm 0.625" / 15.88mm Imperial
NC3030FL ‡ - 15/32-32 UNS-2B 0.520" / 13.21mm 0.344" / 8.74mm 0.797" / 20.24mm 0.625" / 15.88mm Imperial
NH3030 M5423/07-03 1/2-32 UN-2B 0.281" / 7.14mm 0.422" / 10.72mm 0.547" / 13.89mm 0.625" / 15.88mm Imperial
NC3030H M12x1 - M12 x 1 6H 0.469" / 11.90mm 0.422" / 10.72mm 0.734" / 13.89mm 0.625" / 18.64mm Metric

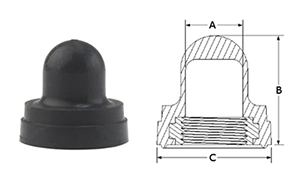

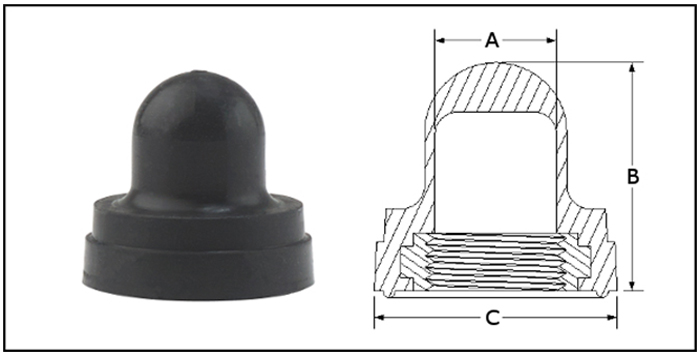

Pushbutton Boots with Round Insert (Figure D)
C1221/22 - 3/8-24 UNF-2B 0.330" / 8.40mm 0.320" / 8.13mm 0.609" / 15.47mm 0.640" / 16.26mm Imperial
C1221/24** - 3/8-27 UNS-2B 0.419" / 10.64mm 0.300" / 7.62mm 0.609" / 15.47mm 0.640" / 16.26mm Imperial
C1221/25 - 3/8-27 UNS-2B 0.419" / 10.64mm 0.300" / 7.62mm 0.609" / 15.47mm 0.640" / 16.26mm Imperial
C1221/21 M10 - M10 x 1 6H 0.330" / 8.40mm 0.320" / 8.13mm 0.609" / 15.47mm 0.640" / 16.26mm Metric
C1221/27 - M10 x 1 6H 0.267" / 6.78mm 0.320" / 8.13mm 0.609" / 15.47mm 0.720" / 18.29mm Metric

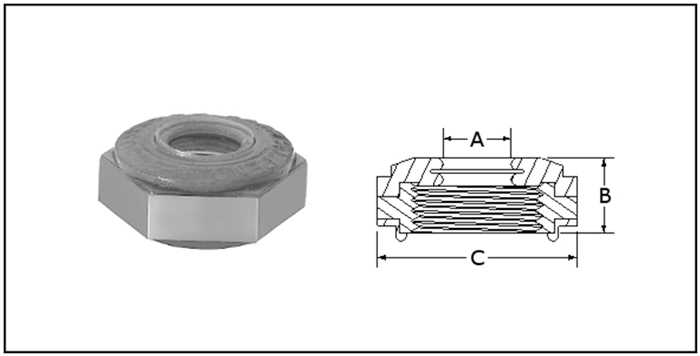

APM Hexseal Part # Military Part # Thread Size Shaft Size (A) Height (B) Hex Size (C) System of Measurement

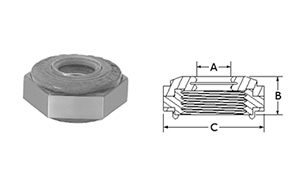

Rotary Boots
N9030x1/4 M5423/09-02 3/8-32 UNEF-2B 0.250" / 6.35mm 0.219" / 5.56mm 0.500" / 12.70mm Imperial
N9040x1/8 M5423/09-03 1/4-32 UNEF-2B 0.125" / 3.18mm 0.219" / 5.56mm 0.375" / 9.53mm Imperial
N9042x1/8 - 1/4-28 UNF-2B 0.125" / 3.18mm 0.219" / 5.56mm 0.375" / 9.53mm Imperial
N9060x1/4 M5423/09-04 15/32-32 UNS-2B 0.250" / 6.35mm 0.219" / 5.56mm 0.625" / 15.88mm Imperial
1332/39 - M7x.75 6H 0.250" / 5.00mm 0.200" / 5.50mm 0.500" / 12.70mm Metric
1332/45 - M10x1 6H 0.236" / 6.00mm 0.236" / 5.90mm 0.500" / 12.70mm Metric
1332/46 - M10x.75 6H 0.236" / 6.00mm 0.236" / 5.90mm 0.500" / 12.70mm Metric
C1332/41 - M9x.75 6H 0.250" / 6.35mm 0.219" / 5.56mm 0.500" / 12.70mm Metric
APM Hexseal
Part #
Military
Part #

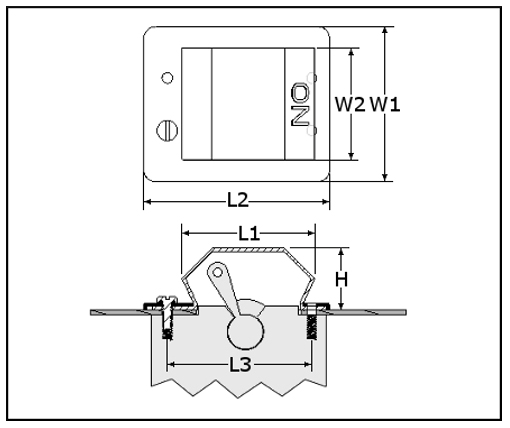

Poles Marks Height (H) Length 1 (L1) Length 2 (L2) Length 3 (L3) Width 1 (W1) Width 2 (L2) Standard
Seelskrews®
Incld.

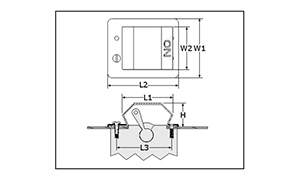

Lever-Actuated Circuit Breaker Boots, Front-of-Panel Mounting
HE1015 M5423/14-05 1-Pole ON 0.875" / 22.22mm 1.875" / 47.63mm 2.625" / 66.66mm 2.062" / 52.37mm 1.375" / 34.93mm 0.875" / 22.22mm S6-32x3/8" 2701 2 Count
HE1020 M5423/14-06 2-Pole ON 0.875" / 22.22mm 1.875" / 47.63mm 2.656" / 67.46mm 2.062" / 52.37mm 2.219" / 56.36mm 1.594" / 40.49mm S6-32x3/8" 2701 4 Count
HE1045 - 1-Pole - 0.450" / 11.43mm 1.300" / 33.02mm 1.900" / 48.26mm 1.660" / 42.16mm 0.800" / 20.32mm 1.200" / 30.48mm S6-32x3/8" 2701 2 Count
HE1050 M5423/14-07 3-Pole ON 0.875" / 22.22mm 1.875" / 47.63mm 2.656" / 67.46mm 2.062" / 52.37mm 2.969" / 75.41mm 2.344" / 59.54mm S6-32x3/8" 2701 6 Count
HE1070 M5423/14-03 3-Pole ON 0.922" / 23.42mm 2.00" / 50.80mm 3.719" / 94.46mm 2.750" / 69.85mm 3.656" / 92.86mm 3.156" / 80.16mm S6-32x3/8" 2701 6 Count

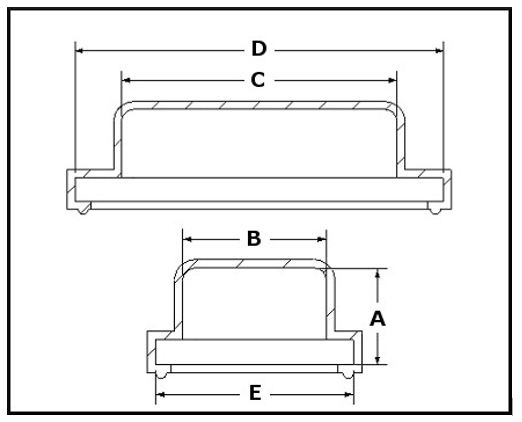

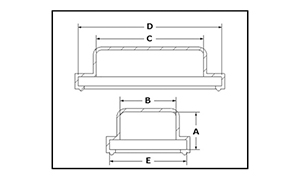

APM Hexseal
Part #
Height (A) Width 1 (B) Length 1 (C) Length 2 (D) Width 2 (E) Compatible Switches
(Partial List)
Lever-Actuated Circuit Breaker Boots, Front-of-Panel Mounting
1113/62 0.297" / 7.54mm 0.797" / 20.24mm 0.687" / 17.45mm 1.093" / 27.76mm 0.968" / 24.61mm Eaton/Arrow Hart 2600 Series
1113/66 0.228" / 5.79mm 0.348" / 8.84mm 0.531" / 13.49mm 0.750" / 19.05mm 0.531" / 13.49mm Carling 611/621-Series
1113/70 0.297" / 7.54mm 0.437" / 11.10mm 0.875" / 22.23mm 1.218" / 30.94mm 0.640" / 16.27mm Carling RSC-Series
1113/71 0.413" / 10.49mm 0.687" / 17.45mm 1.046" / 26.57mm 1.327" / 33.71mm 0.703" / 17.86mm Carling M Series, Sensata/Airpax R11, Eaton/Heinemann LC-1
