Who is Panova?

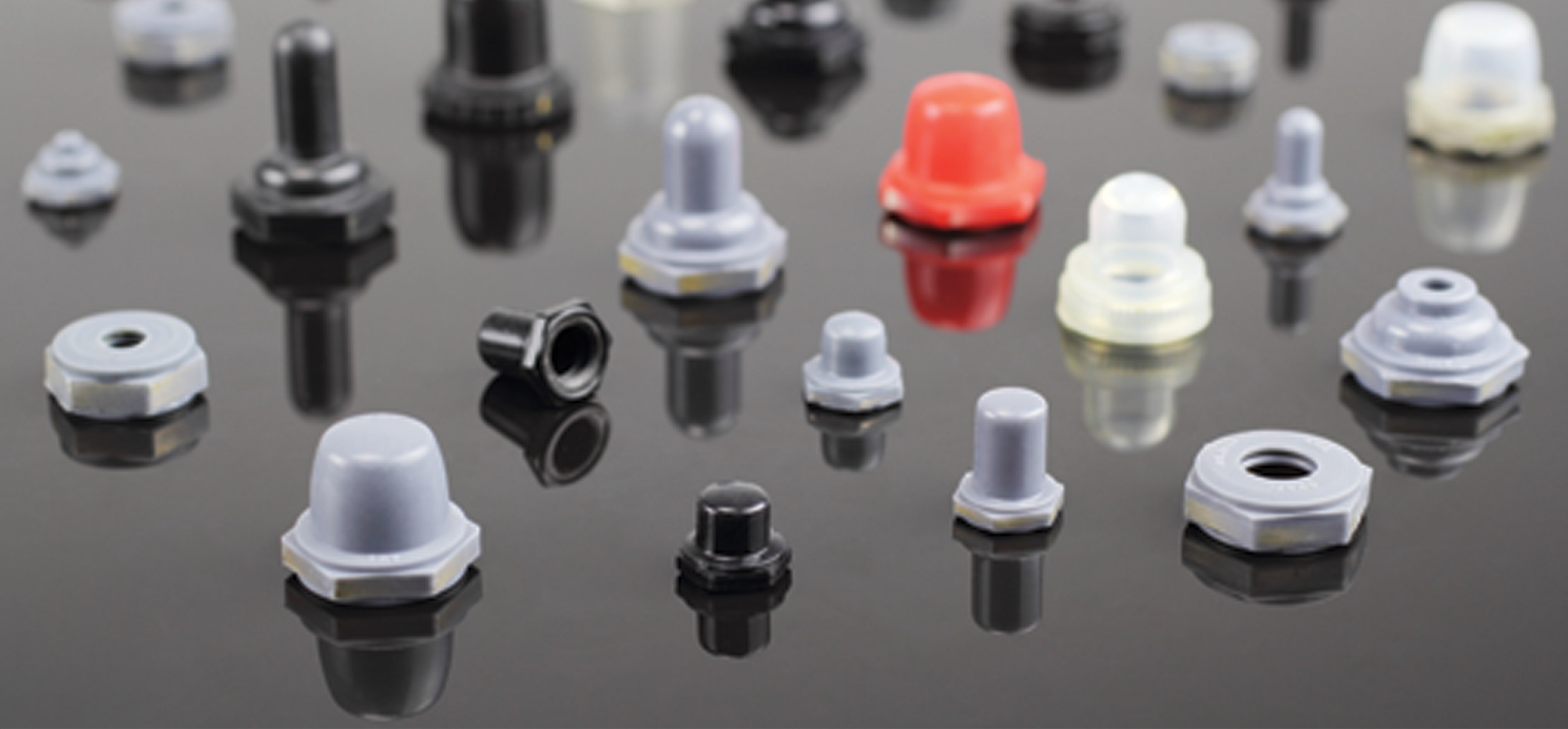

Panova’s switch seal boots are elastomeric boots that seal, protecting a switch and internal components against hazardous foreign elements.
Our switch seal boot is a one-piece component constructed of a flexible rubber boot element that is bonded to a threaded metal insert during molding. This insert fully encapsulates the switch and bushing to panel. This assembly replaces the panel mounting nut and seals the mounting hole, making it watertight. It also eliminates any need for gaskets or packings.
Panova’s switch seal boots are designed to protect against moisture, oil, dirt, dust, most solvents and many acids. Our switch seal boots also provide vibration-resistant mounting and act as double insulation with no interference to switch movement.
Whether your organization requires a small quantity of switch seal boots or needs to buy in bulk, you can trust that the Panova team can meet your needs.
Panova Circuit Breaker Boots
Flame Enterprises is stocking the circuit breaker boots from Panova! The Panova 6452 switch seal boot comes in two sizes. The sizes are determined by the thread of the hex nut. The 6452-3 (7/16-32 threads) & 6452-4 (15/32-32 threads). Each boot is bagged individually with a NBR O-ring.
6452-3 7/16 bushing
Used on MS3320, MS14154, MS26574 Series Breakers
6452-4 15/32 bushing
Used on MS22073, MS25244 Series Breakers
Select the Product Group below for the latest Panova Product Information
- Toggle Switch Seal Boots
- Push Button Switch Seal Boots
- Rotary & Potentiometer Switch Seal Boots
- Specialized Switch Seal Boots
Toggle Switch Seal Boots
Designed for use with toggle switches, our toggle switch seal boots protect internal components of the switch from water, oil, dust, solvents, acids, and other contaminants.
Panova’s Toggle Switch Seal Boots come in a variety of materials, sizes, and colors. Custom sizes, materials, and colors are available to meet your specific requirements.
Push Button Switch Seal Boots
Designed for use with push button switches, our push button switch seals protect internal components of the switch from water, oil, dust, solvents, acids, and other contaminants.
Panova's Push Button Switch Seals come in a variety of materials, sizes, and colors. Custom sizes, materials, and colors are available to meet your specific requirements.
Rotary Switch Seal Boots
Designed for use with rotary switches, our rotary & potentiometer switch seal boots protect internal components of the switch from water, oil, dust, solvents, acids, and other contaminants.
Panova’s Rotary & Potentiometer Switch Seal Boots come in a variety of materials, sizes, and colors. Custom sizes, materials, and colors are available to meet your specific requirements.

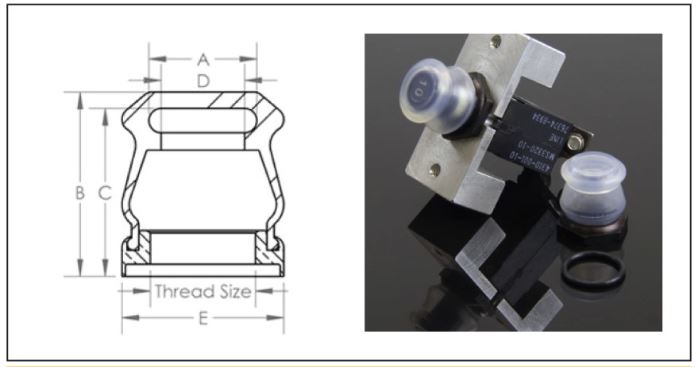

6452
A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic.
Panova’s 6452 switch seal boot comes in two sizes. The sizes are determined by the thread of the hex nut.
- 6452-3 (NSN 5930-01-523-1780) (7/16-32 threads) CB Push Button Boot. 30 Duro Clear Silicone boot crimped to a brass hex nut with a black oxide finish. Each boot is bagged individually with a NBR O-ring.
- 6452-4 (NSN 5930-01-481-2289) (15/32-32 threads) CB Push Button Boot 30. Duro Clear Silicone boot crimped to a brass hex nut with a black oxide finish. Each boot is bagged individually with a NBR O-ring.
